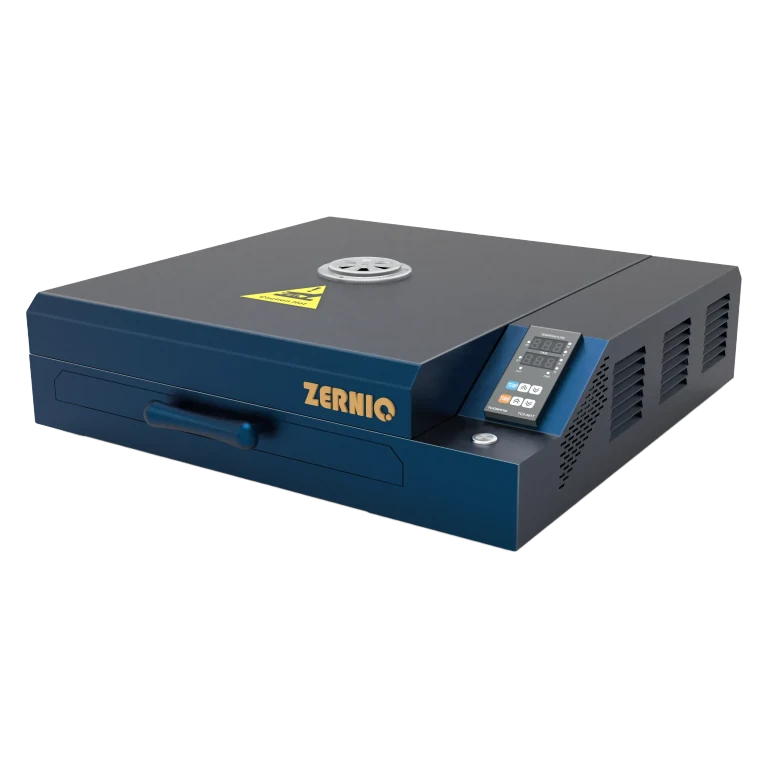

ZERNIQ HT01 A3 Plus DTF Curing Oven
A DTF powder-curing oven with a 330 × 480 mm / 13 × 19 in work area and digital time and temperature controls. Cure printed PET film before the separate heat-press stage.
Read the DTF film and powder guide when selecting compatible consumables.
The ZERNIQ HT01 A3 Plus DTF curing oven performs the powder-curing stage of a DTF transfer workflow. Its 330 × 480 mm / 13 × 19 in work area accommodates A3 Plus, A3, and A4 sheets. The printer, film, ink, powder, and heat press are separate and are not included.
A dedicated curing stage for sheet-based DTF workflows
Check the 110 V, 1300 W electrical requirements and usable tray area against your workspace. Select curing settings for your film, powder and ink, and test the complete transfer before production.
Curing-only equipment
The HT01 cures adhesive powder on printed DTF film. It is not a printer or heat press, and those devices are not included.
13 × 19 in work area
The 330 × 480 mm tray accommodates A3 Plus, A3, and A4 sheets for sheet-based curing.

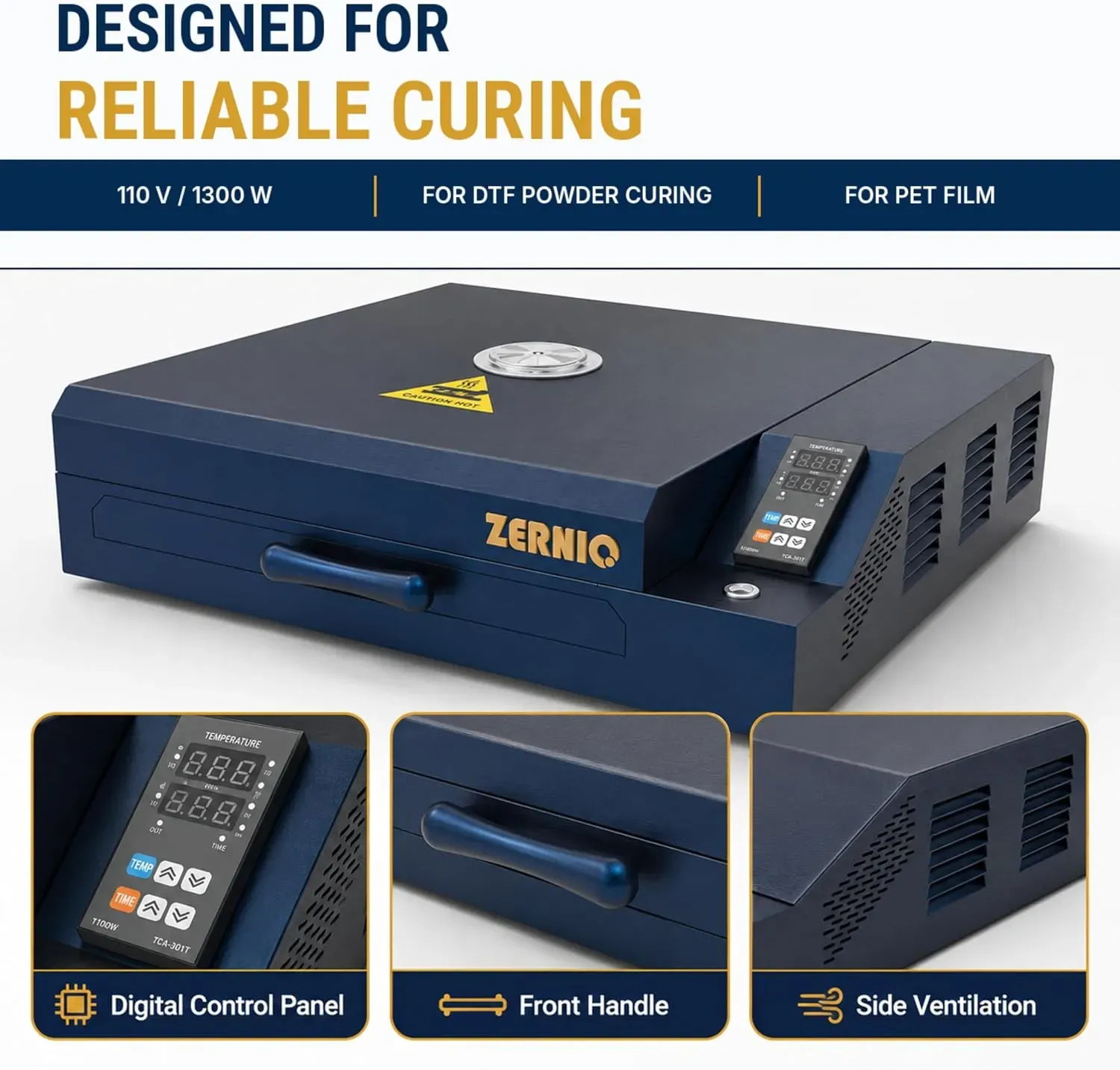

Digital time and temperature control
Use the front control panel to set the curing cycle for the selected film, powder, ink, and workspace conditions.

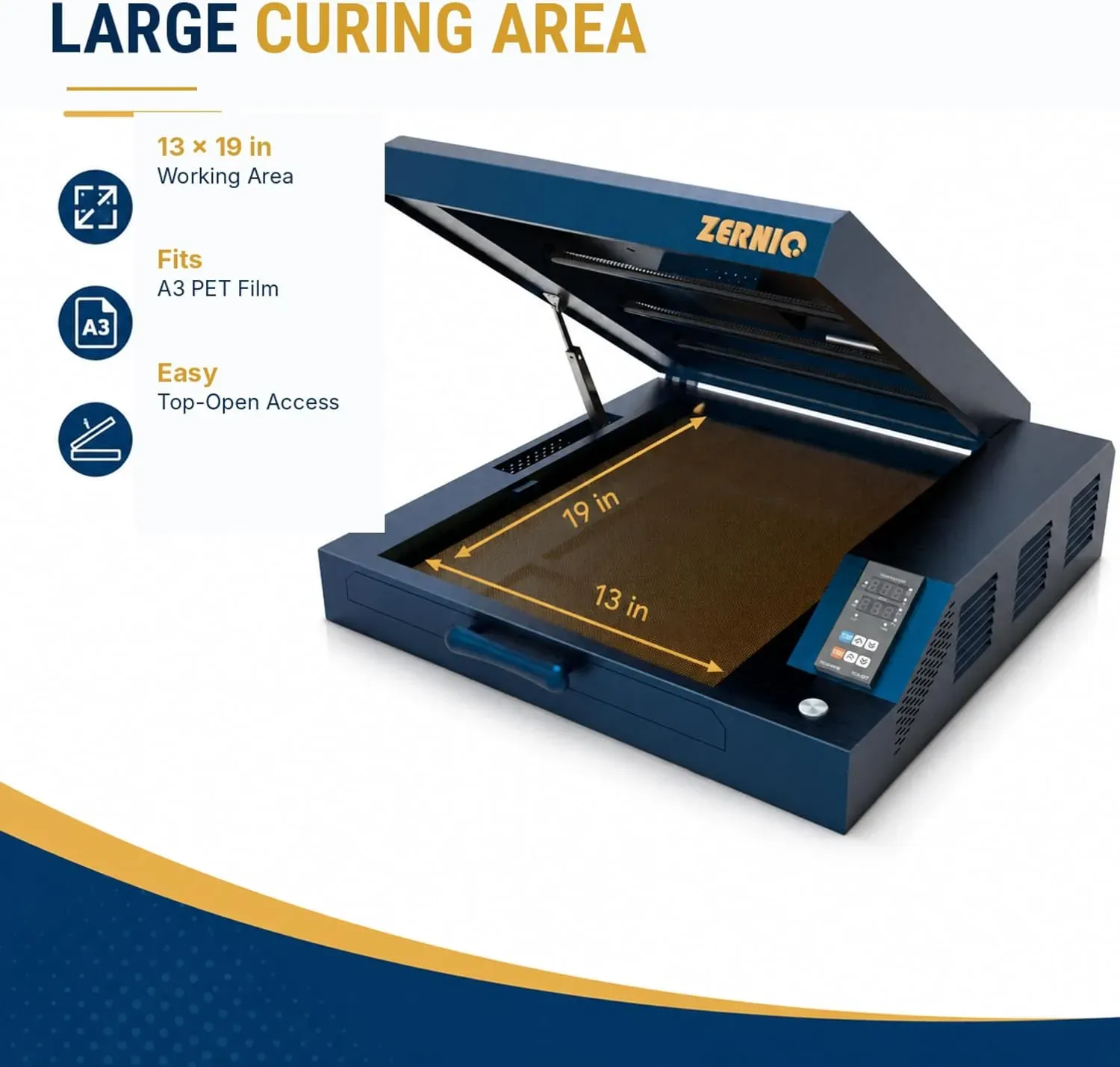

Accessible tray and ventilation layout
A slide-out tray, top-opening lid, and side vents support loading, inspection, and heat management during use.
ZERNIQ HT01 Curing Oven FAQ
What does the HT01 do?
It cures DTF adhesive powder on printed PET film before the transfer is applied with a heat press.
What is the working area?
The usable area is 330 × 480 mm / 13 × 19 in and accommodates A3 Plus, A3, and A4 sheets.
What voltage and power does it require?
The listed configuration is 110 V and 1300 W. Confirm the available circuit is suitable before use.
Which time and temperature should I use?
Settings depend on the film, powder, ink, and environment. Follow the consumable supplier's guidance and test before production.
Are a printer and heat press included?
No. The oven is a dedicated curing stage; a DTF printer and heat press are separate.
What is included in the box?
The package lists the HT01 oven, power cord, insulation mesh pad, handle, spare fuse, spare switch, mounting hardware, and instruction manual.
Does the oven need ventilation?
Use it in a clean, well-ventilated workspace and keep the side vents unobstructed.

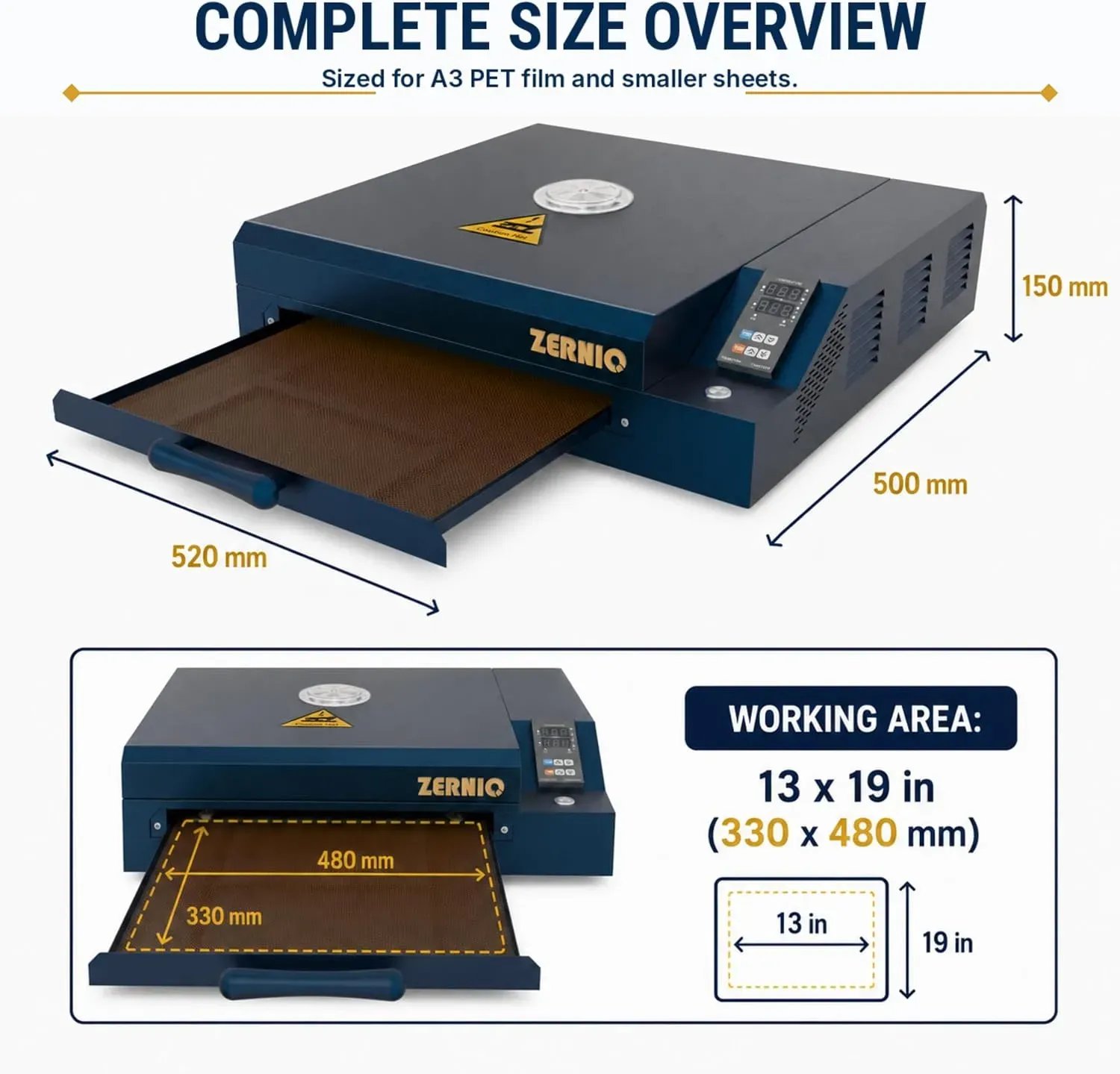

What are the dimensions and weights?
The unit measures 520 × 500 × 150 mm / 20.47 × 19.69 × 5.91 in. Net weight is 13.5 kg and gross weight is 16.7 kg.
